Wooden Retaining Walls in Napier: Costs, Consent & Real Rebuild
- Apr 26
- 5 min read
Updated: Aug 6
Wooden retaining walls are a popular solution for managing sloped land, creating usable outdoor space, and improving property layout. In New Zealand, timber retaining walls are commonly used for both landscaping and construction projects.
This real project shows exactly what's involved. Everyday Contractors completely rebuilt this timber retaining wall, covering everything from demolition and excavation to drainage, deep post holes, engineering and council consent. We also explain the factors that affected the final cost. As part of the geotechnical investigation required for consent, drilling continued to a depth of 4.9 metres before engineers had the information they needed to design the wall safely.
Below, we explain what timber retaining walls are, how much they cost, how they’re built, and when they’re the right option.
What is a Wooden Retaining Wall?
A wooden retaining wall is a structure built from timber to hold back soil, stabilise sloped land, and create level, usable areas on a property.
They are commonly used for:
Sloped sections and uneven land
Garden and landscaping features
Creating level building or outdoor areas
Supporting driveways and accessways
Timber retaining walls are a practical and cost-effective solution for many residential projects.
Why Choose a Timber Retaining Wall?
Timber is one of the most widely used materials for retaining walls in New Zealand.
Key benefits:
Cost-effective – generally lower upfront cost than concrete
Natural appearance – blends well with outdoor environments
Flexible design – suitable for a range of layouts
Faster installation – compared to heavier materials
Timber retaining walls are often chosen for residential landscaping and new builds where a balance of cost and performance is needed.
How Much Does a Wooden Retaining Wall Cost in NZ?
The cost of a timber retaining wall depends on several factors, including height, ground conditions, and site access.
Typical factors affecting cost:
Height and length of the wall
Ground conditions and drainage requirements
Type of timber used
Access to the site
Engineering requirements (for larger walls)
Because every retaining wall is different, an on-site assessment is usually required to provide an accurate estimate.
Timber vs Concrete Retaining Walls
Choosing the right material depends on your project needs.
Feature | Timber | Concrete |
Cost | Lower upfront | Higher upfront |
Lifespan | Moderate | Long-term |
Appearance | Natural | Structural/modern |
Installation | Faster | More complex |
Timber is ideal for cost-effective and natural-looking solutions, while concrete is often used for larger or structural applications.
How Wooden Retaining Walls Are Built
For this project in Napier, we followed a structured process to ensure a strong and durable result.
1. Site Preparation
The area was cleared and prepared, ensuring proper levels and layout.
2. Post Installation
Timber posts were installed securely to provide structural support.
3. Wall Construction
Timber boards were installed to retain the soil and create the wall structure.
4. Drainage and Backfill
Drainage was installed behind the wall to prevent water build-up and ensure long-term performance.
5. Final Finishing
The wall was checked and completed to ensure alignment and durability.
Proper installation and drainage are critical for long-term performance.
Real Project: Wooden Retaining Wall in Napier
This project involved building a timber retaining wall for a residential property in Napier.
The client needed:
A solution for sloped land
A way to create usable outdoor space
A cost-effective retaining option
The result was a strong, well-built retaining wall that improved both the functionality and appearance of the property.
Expert Insight from Everyday Contractors
In our experience, the most important part of a retaining wall is proper drainage and base preparation.
A common mistake is not allowing for water flow behind the wall, which can lead to pressure build-up and structural issues over time.
Is a Timber Retaining Wall Right for You?
✔ You need to manage sloped land
✔ You want a cost-effective retaining solution
✔ You prefer a natural timber look
✔ You’re working on a residential landscaping project
Frequently Asked Questions About Retaining Walls
How long do timber retaining walls last?
With proper construction and drainage, timber retaining walls can last many years depending on materials and conditions.
Do retaining walls need drainage?
Yes — drainage is essential to prevent water build-up and ensure long-term stability.
When is concrete better than timber?
Concrete is typically better for larger, engineered retaining walls.
Do I need consent for a retaining wall in NZ?
In some cases, yes — especially for taller walls. Requirements vary depending on the project.
Anthony and Andrena have section that was made flat by pushing the hill off to one side. The property developer then installed a retaining wall and built the house. 10 years later, the wall was starting to fail. It leaned away from the building and splits were forming on the lawn. Geo-engineers were called in and a plan was developed. It needed council consent before we could start.
#1 Wooden retaining wall - starting to fail

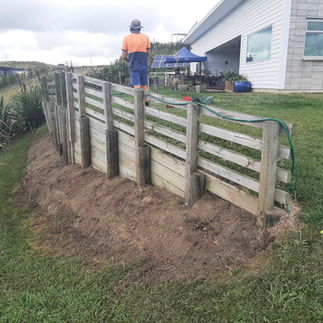

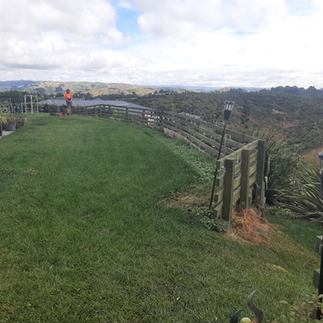

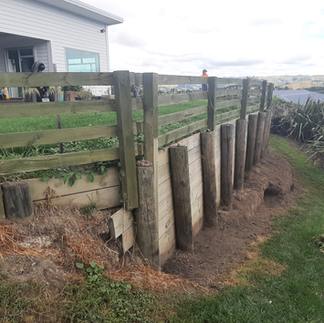

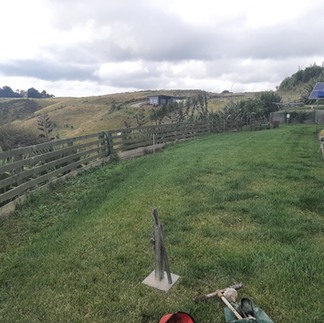

Leaning timber retaining wall on sloped property in Napier before replacement work Temporary safety fencing installed along failing wood retaining wall in Napier hillside section Boundary area with unstable timber retaining wall and erosion risk in Napier Close-up of leaning wooden retaining wall showing structural movement in Napier Existing timber retaining wall bowing outward on sloped section in Napier before rebuild Excavated area behind failing wood retaining wall showing soil pressure in Napier Worker inspecting leaning timber retaining wall prior to reconstruction in Napier Wide view of sloped backyard with failing wood retaining wall in Napier Side angle of timber retaining wall leaning downhill on residential property in Napier Timber retaining wall leaning along sloped boundary with visible ground movement in Napier Close view of bowed wood retaining wall posts under soil pressure before repair in Napier Wide view of hillside lawn showing failing timber retaining wall along edge in Napier
The new plan involved keeping the bottom of the original posts and using these to create a lower terrace. The new wall was to be built 1m nearer the house.
#2 Wooden retaining wall - Creating 1st terrace

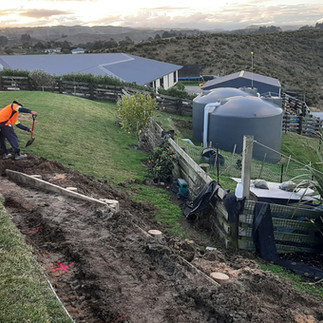

Old timber retaining wall being cut down to form first terrace on sloped property in Napier Safety fencing installed while removing failing wood retaining wall for new terrace in Napier Excavator cutting into hillside to create first retaining wall terrace in Napier Excavation trench formed after removing old timber retaining wall for terrace build in Napier Ground reshaped and levelled to establish first terrace for wood retaining wall in Napier Site cleared and cut back preparing for new timber retaining wall terrace construction in Napier
We took out the top balustrade and dug down 1m from the top of the old retaining wall. Soil was lifted over the old wall and placed at the foot of the wall. The soil helped add strength to the old wall. Now the retaining planks were exposed we could remove the top 4 layers and cut the tops off the original posts. Leaving behind approximately 800mm of retaining wall.
#3 Wooden retaining walls - Digging the holes

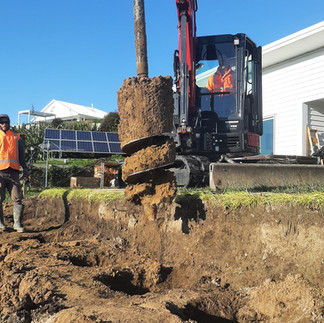

Excavator drilling post holes with auger for wood retaining wall construction in Napier Digger with auger attachment boring holes for retaining wall posts on hillside in Napier Close-up of auger drilling deep post hole for timber retaining wall in Napier Soil being extracted by auger during retaining wall post hole drilling in Napier Contractor guiding auger drilling along retaining wall line on sloped site in Napier Excavator auger creating foundation holes for wood retaining wall posts in Napier Row of drilled post holes prepared for timber retaining wall installation in Napier Post hole drilling in progress for new wood retaining wall terrace in Napier Excavator with auger attachment preparing retaining wall foundations in Napier
We initially dug the holes 3.6m deep but when the geo-engineers came to inspect, they found we were still in the loose soil that the developer had initially pushed over. We got a digger back and then dug the holes 4.9m deep.
#4 Wooden retaining wall, inspect holes & set posts

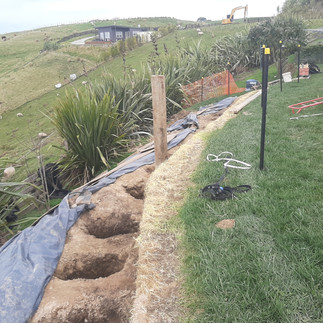

Measuring depth of drilled post hole for wood retaining wall construction in Napier Close-up view of deep augered hole inspected before setting retaining wall post in Napier Contractor checking post hole depth and alignment for timber retaining wall in Napier Truck delivering timber posts for wood retaining wall installation in Napier Hiab crane unloading large timber posts for retaining wall build in Napier Row of drilled holes ready for post installation on retaining wall project in Napier Timber retaining wall posts being positioned along terrace line in Napier Installed retaining wall posts set into ground along hillside in Napier Excavator working alongside newly set timber posts for retaining wall in Napier

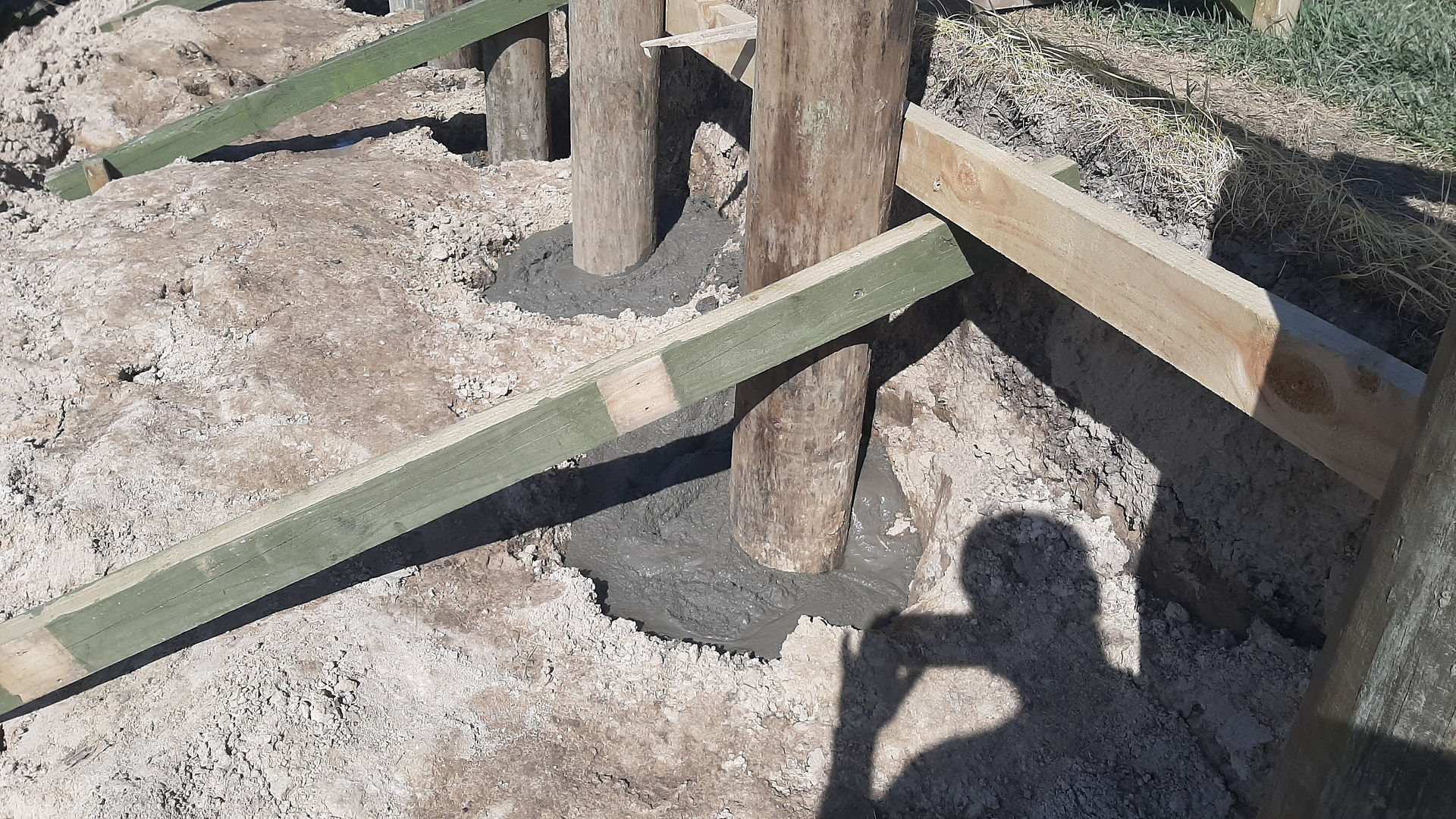

Next stage was setting the posts in the ground. We put 100mm of concrete below each post and left if to dry before setting the post in the ground.
#5 Wooden retaining wall - concrete posts in place

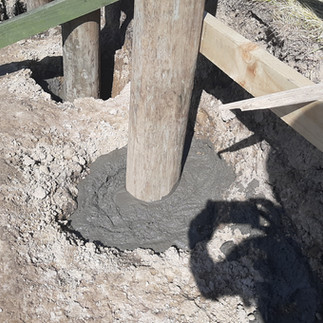

Concrete poured around timber retaining wall post to secure footing in Napier Wood retaining wall posts set in fresh concrete with bracing supports in Napier Close-up of concrete base stabilising timber posts for retaining wall construction in Napier
We used a line pump to quickly put the concrete around the posts.
#6 Wooden retaining wall - concrete posts in place
Timber retaining wall planks installed between posts with drainage fabric in Napier Wood retaining wall boards secured to posts with backfill material behind in Napier Completed section of timber retaining wall with soil backfilled behind in Napier Close view of retaining wall timber planks fixed in place along hillside in Napier Backfilling process behind newly installed wood retaining wall on sloped site in Napier Timber retaining wall structure taking shape with posts, planks, and backfill in Napier
With the posts in place we start to fix the retaining planks, then fold in the geo-mat, a little pea metal, place the drainage coil and top up with more pea metal. The top 200mm is fresh soil. You can also see where the soil, initially dumped over retaining wall, is now cleared away to expose the bottom terrace.

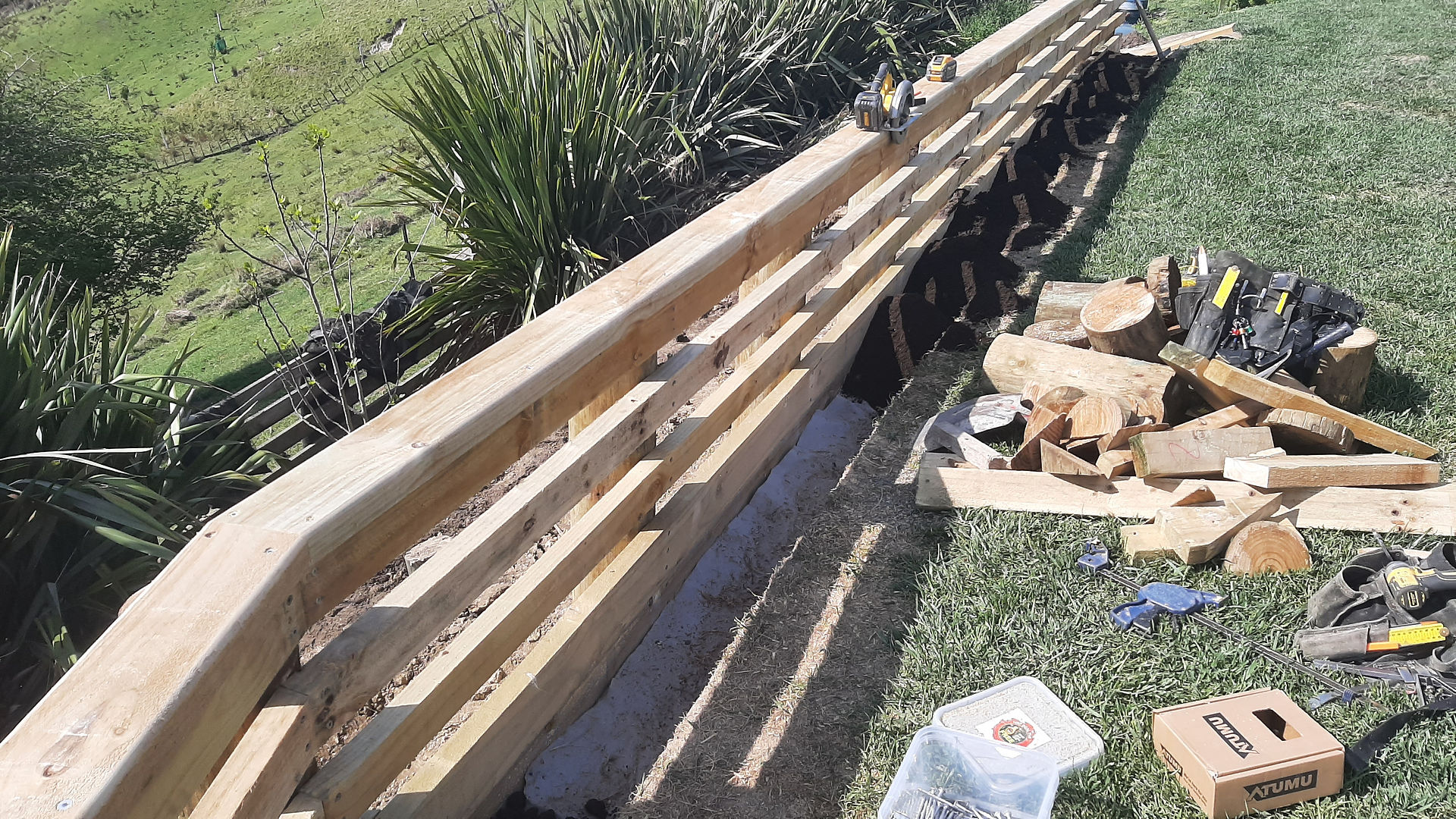

#7 Wooden retaining wall - Finishing the hand rail
Installing drainage coil behind wood retaining wall to manage water flow in Napier Timber handrail being installed on top of retaining wall overlooking hillside in Napier Completed wood retaining wall with handrail following curved landscape in Napier Close-up of finished timber retaining wall with handrail and drainage system in Napier Finished retaining wall and handrail providing safety along sloped section in Napier Wide view of completed wood retaining wall with handrail across landscaped property in Napier Backfilled retaining wall with installed handrail and tidy grass finish in Napier Timber retaining wall and handrail wrapping around hillside boundary in Napier Timber handrail installation in progress along completed wood retaining wall in Napier Rear view of completed retaining wall showing posts, soil backfill, and finished top rail in Napier Close-up of newly fixed timber handrail boards on retaining wall with tools on site in Napier Excavator and tools beside finished wood retaining wall and handrail on hillside property in Napier
The drainage coil is buried under fresh soil. The handrail is completed.
